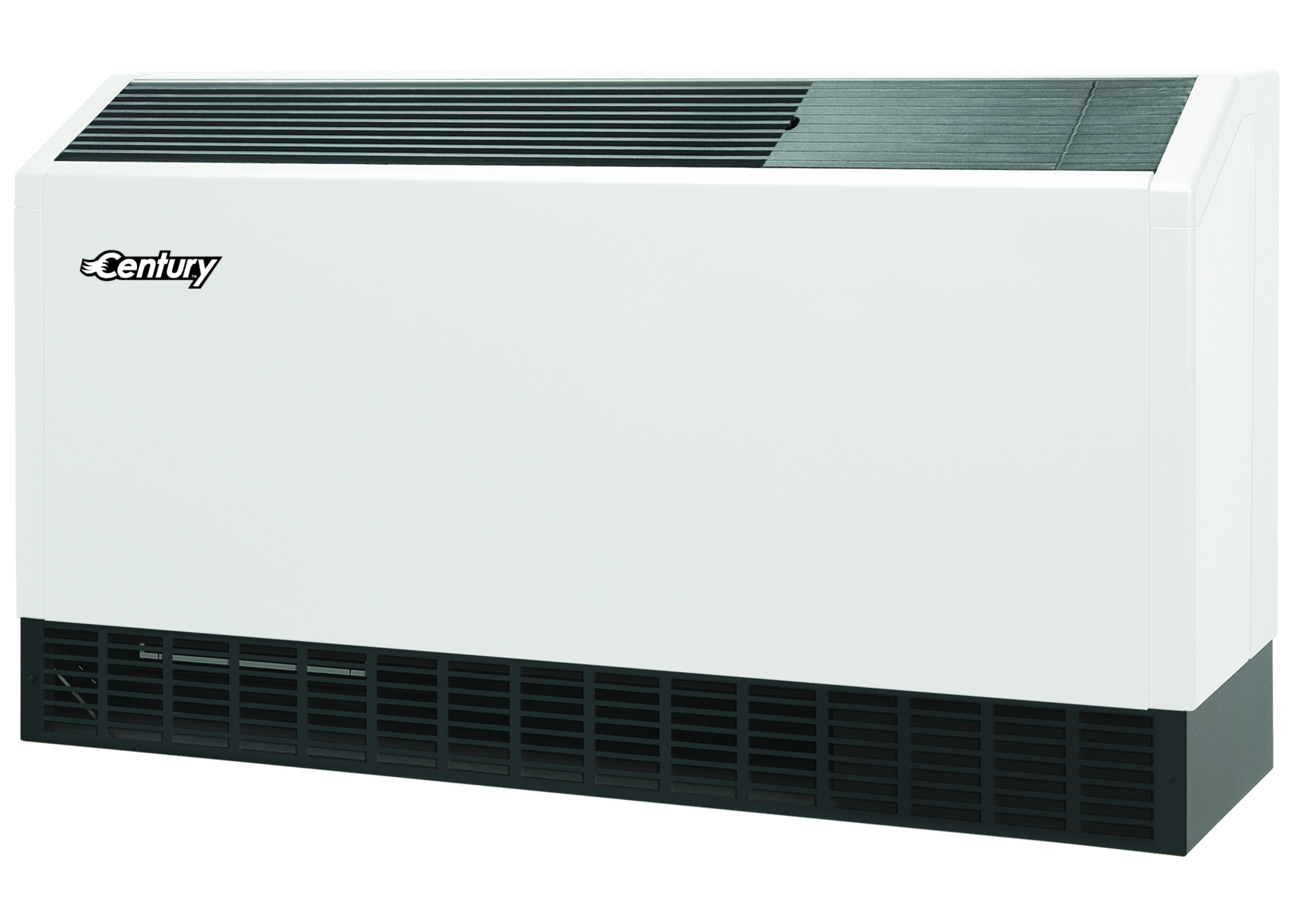

A picture of HRC-Series Console 3/4T through 1-1/2T
A picture of the AHRI certification logo
HRC-Series Console 3/4T through 1-1/2T

Features



  • 3/4T through 1-1/2T Capacities
  • Ideal for spaces where individual control is required, or where ceiling height/space are limited, or when preserving the integrity of the building structure against invasive ductwork installation
  • Environmentally-friendly EarthPure® (HFC-410A) zero ozone depletion refrigerant
  • Two-piece chassis/cabinet design
  • Slope top with aluminum rigid bar supply air grille and aluminum control door
  • TXV metering device
  • Standard and Extended-Range models available
  • Advanced digital auto change-over unit mounted control with temperature display, and speed selection
  • Remote-mounted control available
  • Microprocessor controls standard (optional DXM and/or DDC controls)
  • LonWorks, BACnet, Modbus and Johnson N2 compatibility options for DDC controls
  • Right or left-hand piping arrangement
  • Front or bottom return air
  • Unit Performance Sentinel performance monitoring system
  • Eight safeties standard
  • Wide variety of options including coated air coils and UltraQuiet construction
