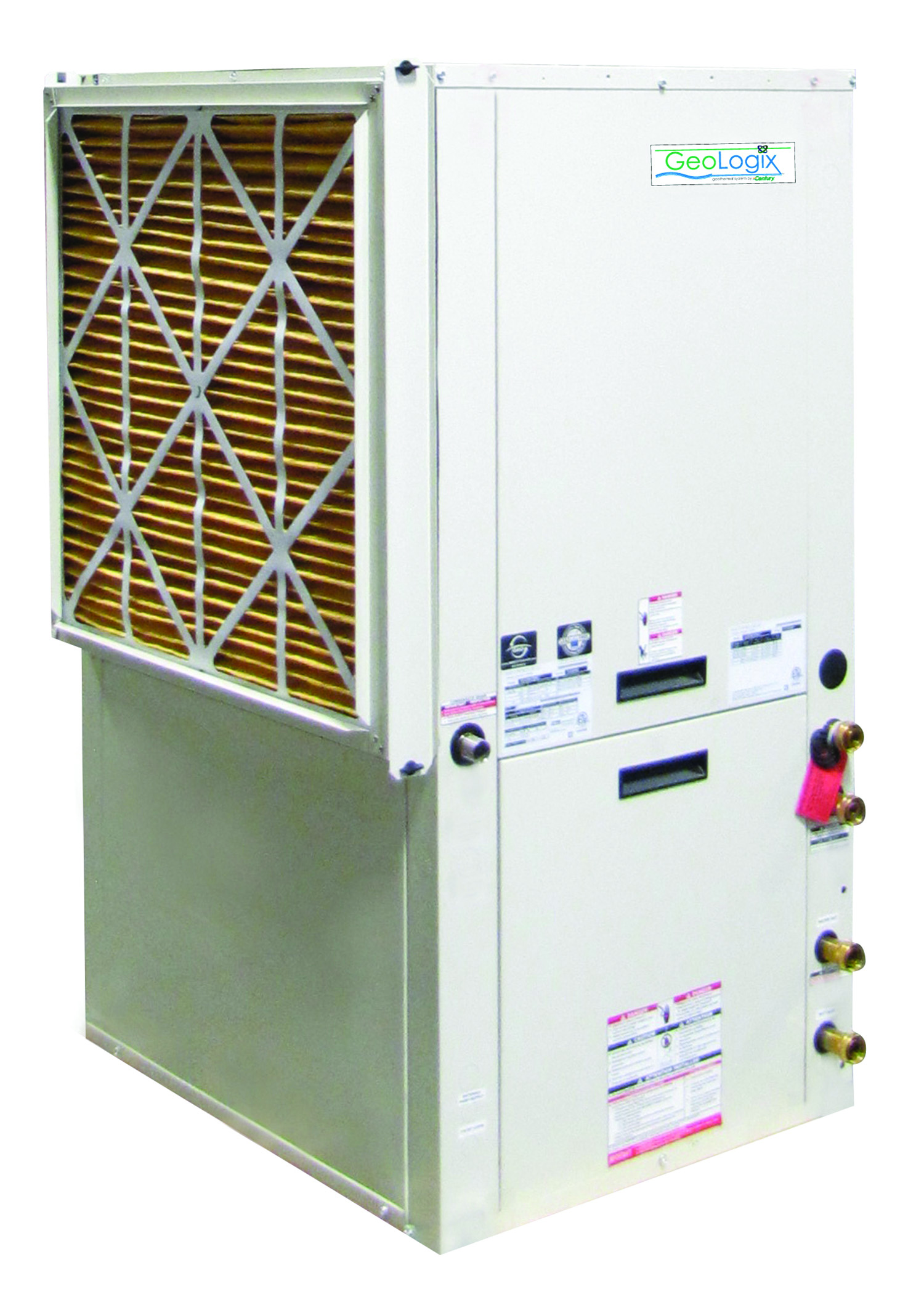

HZ-Series Premium 2-Stage


  • Advanced Controls - DXM2 Board communicating control provides advanced unit functionality and comprehensive configuration, monitoring and diagnostic capabilities through digital communication links with the variable-speed fan motor, variable-speed source pump (or modulating valve) and communicating thermostat or configuration/diagnostic tool
  • Internal Variable Water Flow - Industry-first, built-in factory pump replaces a traditionally inefficient, external component of the geothermal system (water circulation) with an ultra-high efficient, variable speed, internal water flow system consisting of an internal variable speed circulator or an internal modulating motorized water valve
  • 2T to 6T Capacities
  • HZV (Vertical Upflow), HZH (Horizontal), and HZD (Downflow) Models Available
  • Copeland UltraTech™ two-stage scroll compressors
  • ECM variable speed communicating fan motor with soft start
  • Part load operation significantly lowers annual operating costs
  • Galvanized steel construction with black matte polyester powder coat paint and silver accents
  • Stainless steel drain pan
  • Unique double isolation compressor mounting for quiet operation
  • Provides dedicated ClimaDry modulating reheat dehumidification mode
  • Extended range (20 to 120°F, -6.7 to 48.9°C) operation
