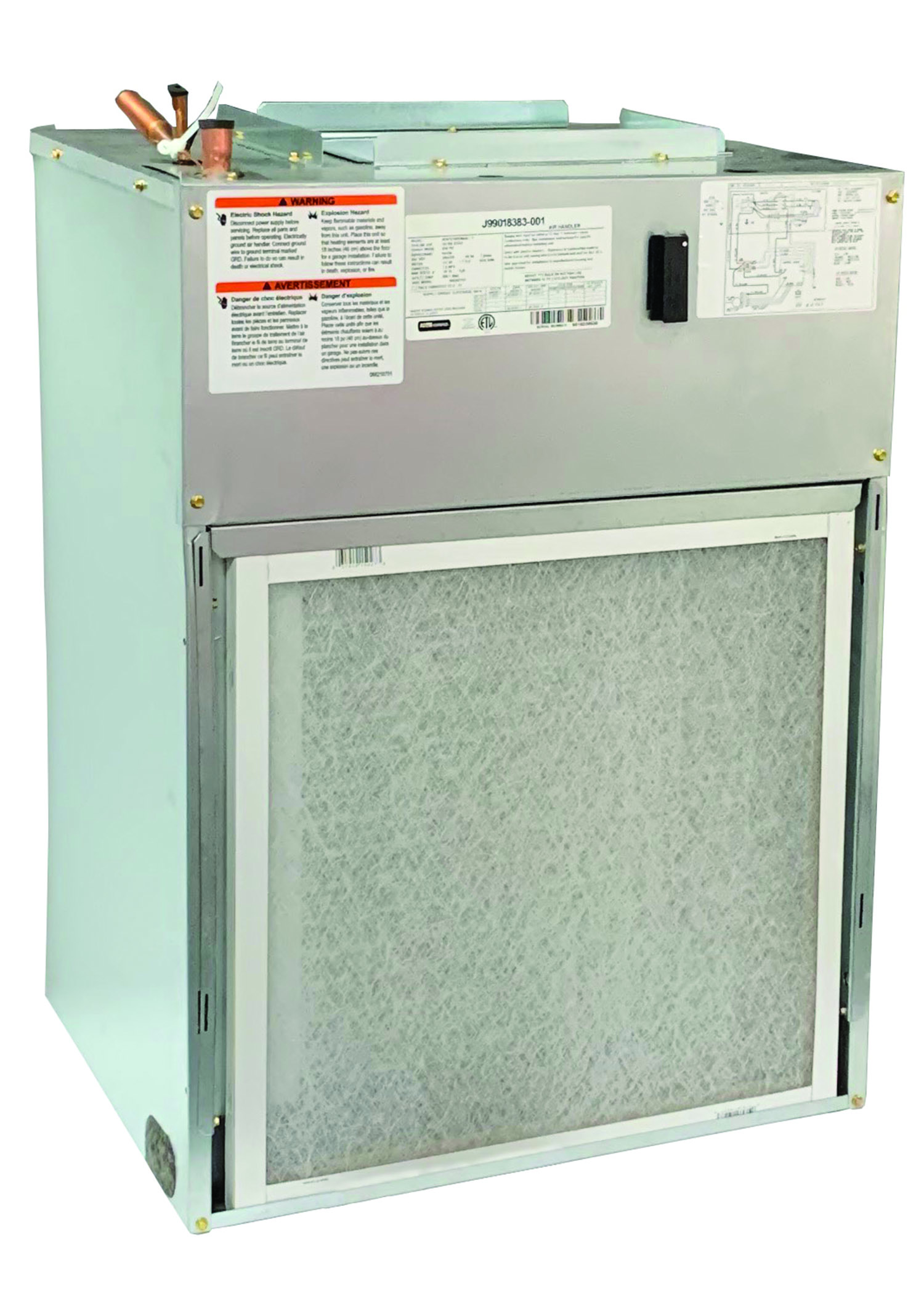

BCW1-Series PSC and ECM Models

Cabinet & General Features


  • Low 30” height all models, all sizes
  • Cabinets Constructed of heavy-gauge, corrosion-resistant galvanized   steel
  • Refrigerant connections located on top left
  • Dual condensate drain connections on left side, right side, and  bottom of cabinet
  • 1” duct flanges on all models simplify attachment to plenums  such as 1 1/2” duct board
  • Air filter included with every air handler; no tools required for change out
  • Wall hanging bracket available as accessory for field installation
  • Approved for installation in manufactured housing and mobile homes


Coil Features

  • AC or HP applications; R-22 & R-410a Compatible
  • Proven copper tube and aluminum fin coil technology
  • Field or factory installed threaded expansion valve
  • Corrosion proof plastic drain pan

Electrical Features

  • 5-speed high efficiency ECM motor or PSC motor available
  • 5, 7.5, or 10 kW heat kits standard factory installed on all models
  • Pull disconnect line voltage connection standard on all models
